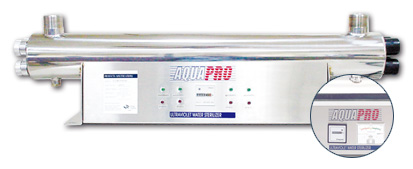

48GPM



UV48GPM-HT / UV48GPM-HTM

UV48GPM STANDARD SPECIFICATION

Dimensionl LxWxD (mm)

980X230X280

Electrical Volts

110/220V / 50/60HZ

Flow Rate

48GPM

In/out Port

1 1/2"

UV Lamp (PC)

4

Quartz Sleeve (PC)

4

Lamp Failure Device

Yes

Ambient Temperature

2-40oC(36-104oF)

Lamp Watts

40Wx4

Chamber

SS304 / SS316

Accumulated Timer

UV48GPM-HT, HTM

UV Light monitor

UV48GPM-HTM

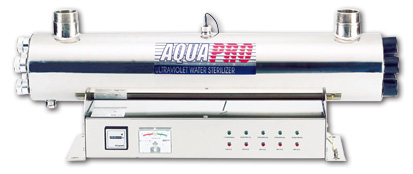

60GPM



UV60GPM-HTM

UV60GPM STANDARD SPECIFICATION

Dimensionl LxWxD (mm)

980X280X280

Electrical Volts

110/220V / 50/60HZ

Flow Rate

60GPM

In/out Port

2" or Flange

UV Lamp (PC)

5

Quartz Sleeve (PC)

5

Lamp Failure Device

Yes

Ambient Temperature

2-40oC(36-104oF)

Lamp Watts

40Wx5

Chamber

SS316

Accumulated Timer

Yes

UV Light monitor

Yes

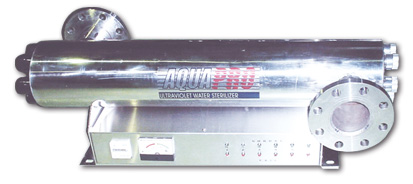

72GPM



UV72GPM-HTM

UV72GPM STANDARD SPECIFICATION

Dimensionl LxWxD (mm)

980X280X280

Electrical Volts

110/220V / 50/60HZ

Flow Rate

72GPM

In/out Port

2" or Flange

UV Lamp (PC)

6

Quartz Sleeve (PC)

6

Lamp Failure Device

Yes

Ambient Temperature

2-40oC(36-104oF)

Lamp Watts

40Wx6

Chamber

SS316

Accumulated Timer

Yes

UV Light monitor

Yes

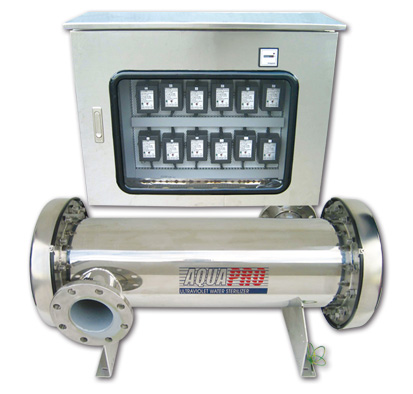

  100~120GPM




UV120GPM-HTM



100GPM &120GPM STANDARD SPECIFICATION

Dimensionl LxWxD (mm)

1500X1100X560

Electrical Volts

110/220V / 50/60HZ

Flow Rate

100GPM, 120GPM

In/out Port

3" Flange

UV Lamp (PC)

10, 12

Quartz Sleeve (PC)

10, 12

Lamp Failure Device

Yes

Ambient Temperature

2-40oC(36-104oF)

Lamp Watts

40Wx10, x12

Chamber

SS316, SS316L

Accumulated Timer

Yes

UV Light monitor

Yes

Separate Power Box

Yes

Leakage Circuit Breaker

Yes

No Fuse Breaker

Yes

Fan

Yes
